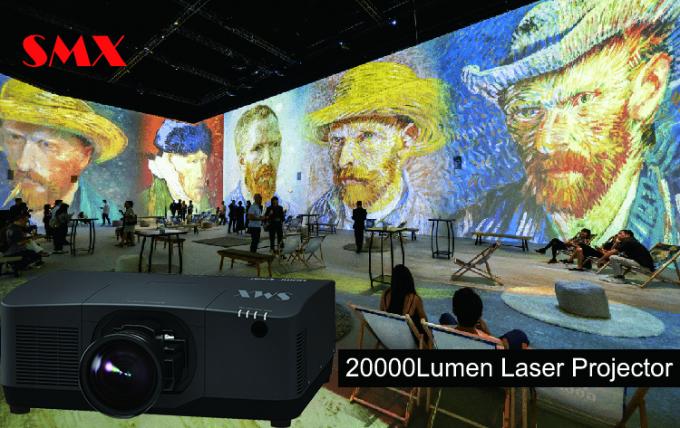

Professional Installation 20000 lumen WUXGA Large Venue 3LCD Laser Projector for 3D projection mapping

Name: Professional Installation 20000 lumen WUXGA Large Venue 3LCD Laser Projector for 3D projection mapping
Brand: Shenzhen SMX Display Technology Co.,Ltd
SKU: MX-X20000U
Price: 15500 USD
Availability: InStock

جزئیات محصول

محل منبع: چین

نام تجاری: SMX

گواهی: CE&ROHS

شماره مدل: MX-X20000U

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: 1 ست

قیمت: USD15500/unit

جزئیات بسته بندی: بسته کارتن

زمان تحویل: 10-15 روز کاری

شرایط پرداخت: T/T ، Western Union ، PayPal

قابلیت ارائه: 10000 مجموعه در هر ماه

بهترین قیمت رو بدست بیار

جزئیات محصول

توضیحات محصول

برجسته کردن:

مدل:	MX-X20000U	صفحه نمایش:	3x1.0 "
روشنایی:	20000	وضوح بومی:	Wuxga (1200 1920)
بزرگنمایی/تمرکز:	موتوری	اندازه صفحه نمایش:	50-500 اینچ
فناوری نمایش:	نمایشگر کریستال مایع	نسبت جنبه:	بومی: 16: 10 سازگار: 4: 3/16: 9/عادی/16: 6
تغییر لنز V:	65 ±	تغییر لنز H:	± 25٪
ورودی سیگنال کامپیوتر:	VGA ； SVGA ； XGA ； SXGA ； WXGA ； UXGA ； Wuxga ； 4K@30Hz

مدل:	MX-X20000U
صفحه نمایش:	3x1.0 "
روشنایی:	20000
وضوح بومی:	Wuxga (1200 1920)
بزرگنمایی/تمرکز:	موتوری
اندازه صفحه نمایش:	50-500 اینچ
فناوری نمایش:	نمایشگر کریستال مایع
نسبت جنبه:	بومی: 16: 10 سازگار: 4: 3/16: 9/عادی/16: 6
تغییر لنز V:	65 ±
تغییر لنز H:	± 25٪
ورودی سیگنال کامپیوتر:	VGA ； SVGA ； XGA ； SXGA ； WXGA ； UXGA ； Wuxga ； 4K@30Hz

Professional Installation 20000 lumen WUXGA Large Venue 3LCD Laser Projector for 3D projection mapping

– Brightness 20,000 lumens .
With a series of compatible lens for VR,Large Outdoor Venue ,Building projection .

Product Description

High Brightness, High Contrast, High Performance and Maintenance-free LCD Laser Projector

SMX MX-X20000U is our latest 3 LCD projector with laser light source in SMX’s Large venue projector PRO-V Series.

This model offers high brightness, high contrast and high color reproduction with the new 3LCD and laser light optical engine.

Filter less by newly designed cooling system and sealed optical engine provides silent operation, maintenance-free fixed installation.

PRO V series is a versatile installation projector with advance keystone correction (Pin cushion/Barrel, 4-corner, 6-corner), full 360o installation capability including portrait mode and a full suite of optional lenses .

In addition, SMX MX-X20000U offers brilliant projection image by the new 1.0” LCD panel and high efficiency laser light source.

Product Features

Key features: 3LCD technology,
3×1.0" Display Panel in SMX 20K lumen 3LCD Laser Projector

Laser Light Source
50,000+ hours of maintenance-free operation (no lamp replacements!)
20K lumen brightness (Perfect for large screens, outdoor events, and high-ambient-light environments)
Edge blending support, adjustable angles and curvatures,
and comes with different electric lens options (projection distance can reach up to 60m or more)
Exceptional clarity, color accuracy (110% DCI-P3), and contrast
Dust-proof design for stable performance in harsh conditions.
Motorized lens shift, 360° projection

Application

Ideal for:

Auditoriums & Houses of Worship – Stable brightness for long sermons/performances.
Rental & Event Companies – Durable, quick-setup design for stages/exhibitions.
Museums & Architectural Mapping – Precise color accuracy (100% Rec.709) Specifications

	Model#	MX-X20000U
Key Parts	Brightness(Lumen)	20,000
	Light Source	Laser
	Display Technology	Liquid Crystal Display
	Native Resolution	WUXGA (1920 x 1200)
Life Time	Normal mode	20000hrs
Life Time	ECO mode	30000hrs
Projection Lens	Len Model	MX-EG12ZLM(Optional)
	Zoom/Focus	Motorized
	Throw Ratio (16:10)	1.24-2.01 @100inch
	F	1.8-2.24
	f	27.7-44.3mm
	Zoom Ratio	1.62
	Screen size (Performance guarantee range)	60-500 inch (80-500 inch)
	Lens Shift V	±65%
	Lens Shift H	±25%
Contrast	Contrast Ratio(Min)	3,000,000:1
AR	Aspect Ratio	Native:16:10 Compatible: 4:3/16:9/normal/16:6
Input Ports	VGA	*1
	HDMI 1.4(IN)	*2
	USB-A	*1
	USB-B	*1(Display)
	RJ45	*1(Display)
	DVI-D	*1
	HD BaseT	*1
	HD-SDI (3G-SDI)	Optional
	Audio in	*1 (VGA/DVI-D share)
	DMX512	*1
Output Ports	HDMI 1.4(OUT)	*1
Output Ports	Audio out	*1
Control Ports	RS232C (Input)	*1
	RS232C (Output)	*1
	Wired Remote(IN)	*1
	Wired Remote(OUT)	*1
Keystone	Keystone Correction	V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction
Pls contact us to know more details!

20000 lumen 3lcd laser projector optional lens

Company Profile

SHENZHEN SMX DISPLAY TECHNOLOGY CO., LIMITED is a company dedicated to projector design and manufacturing, product line including 3LCD,Short Throw LCD, DLP, Laser and Short Throw Laser Projector. We provide a wide range of services including OEM, ODM and customized requirements for customers. Our team have many years of R & D experience in this industry,extensive production and quality management experience, to provide all customers with reliable product quality and service.

As a Projector Manufacturer, we believe in the power of progress and continual progress is key to success. We are committed to product innovation and always pursue cutting-edge technology to make products close to market demand and user experience.

We also provide the full solution for Immersive Projection and 3D Mapping Projection including the edge blending technology.

We work tirelessly to create a suitable projector that to help our clients whatever anywhere they come from. Our projectors are built in 26 languages to help customers for easy use.

Our team-first mindset ensures that every member of our company is dedicated to creating a culture of innovation and progress. We are passionate about what we do and treat every customer with a sincere attitude.

OEM with your brand is available!

Welcome to contact us to chat about more details!
